RESCUE-R

Sun protection and emergency exit

The § 33 Musterbauverordnung (MBO) - German standard building regulations - requires the exis- tence, for each floor, of at least two independent emergency exits.

One of them must comply with the regulations defining the first emergency exit. The first emergency exit enables people to quickly leave a danger zone. It leads either directly into the open air or into a secured area, such as corridors, stairs and exits.

Unlike the first emergency exit that is strictly regulated and clearly defined, the second emergency exit can be interpreted in different ways and faces countless solutions. Until now, uniform regulations have not been applied throughout the country.

For sun protection manufacturers, architects and planners, this represents a huge challenge in terms of design and implementation and might lead to conflicts.

Especially if the fire safety requirements for the second emergency exit are not respected. Further- more, aesthetic aspects, historic preservation regu- lations, constructive environment and, last but not least, costs have to be reconciled in a constructive dialogue.

The sophisticated design of the RESCUE-R can be easily integrated into all standard roller shutters head rails. All components are dimensionally designed in such a way that only the crank handle has to be installed inside the building.

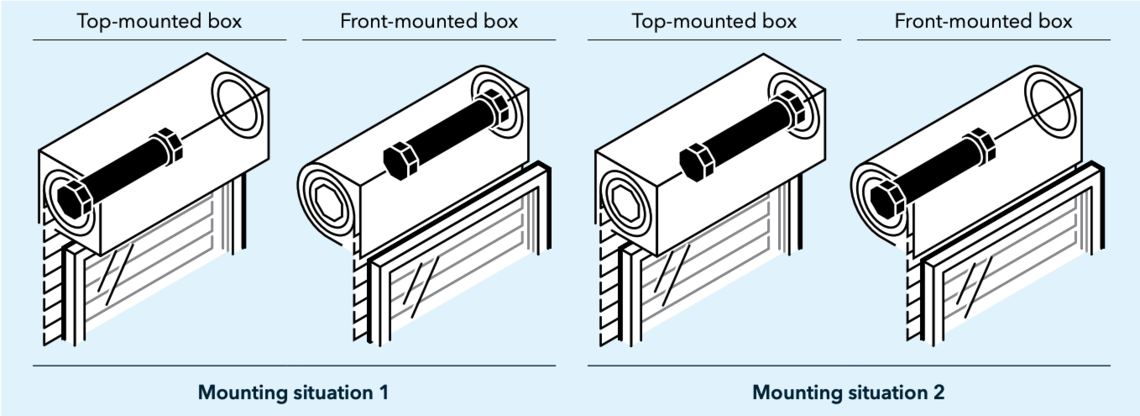

Space-saving: Thanks to its modular design, the system can be integrated into all front and top boxes.

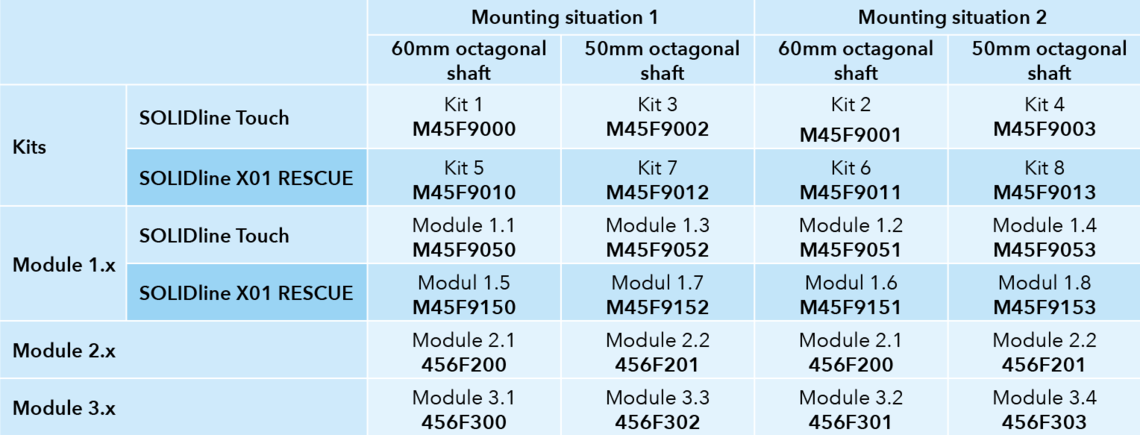

Flexible: RESCUE-R is available for roller shutters with 60mm octagonal shaft and 50mm octagonal shaft.
Maintenance-free: Motor, freewheel and gearbox require no maintenance.
Customer-oriented: In an emergency, the roller shutter can be opened both easily and quickly. The gear reduction of 4:1 ensures easy operation.

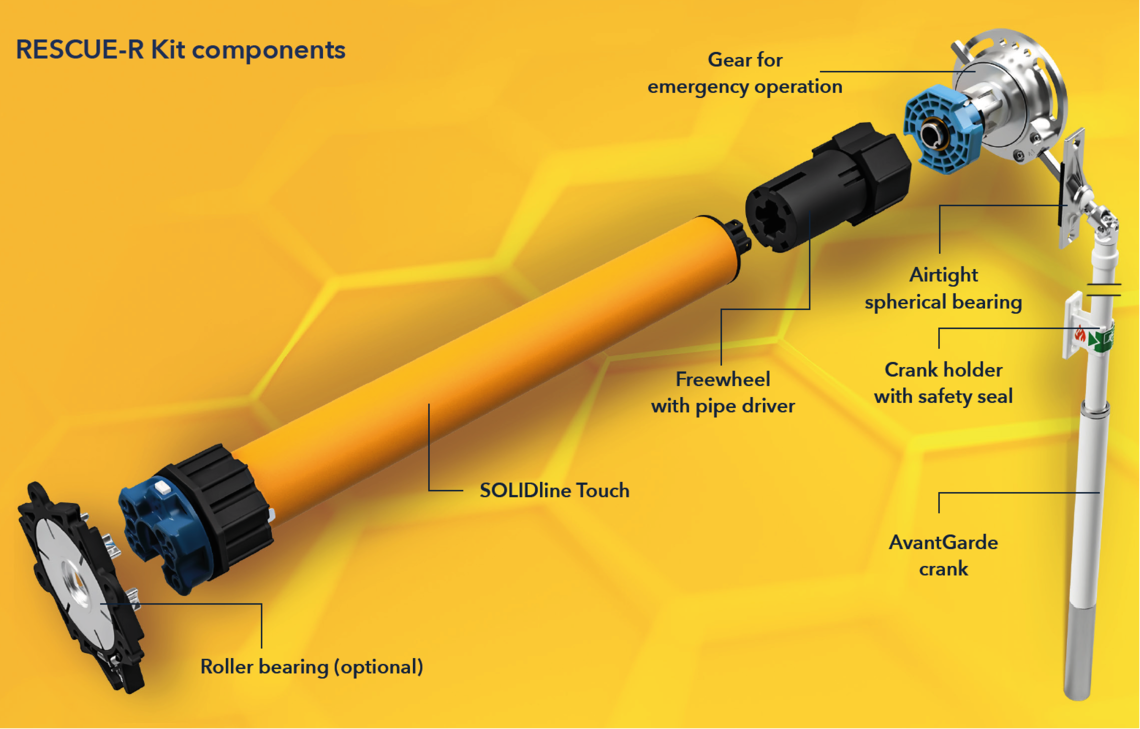

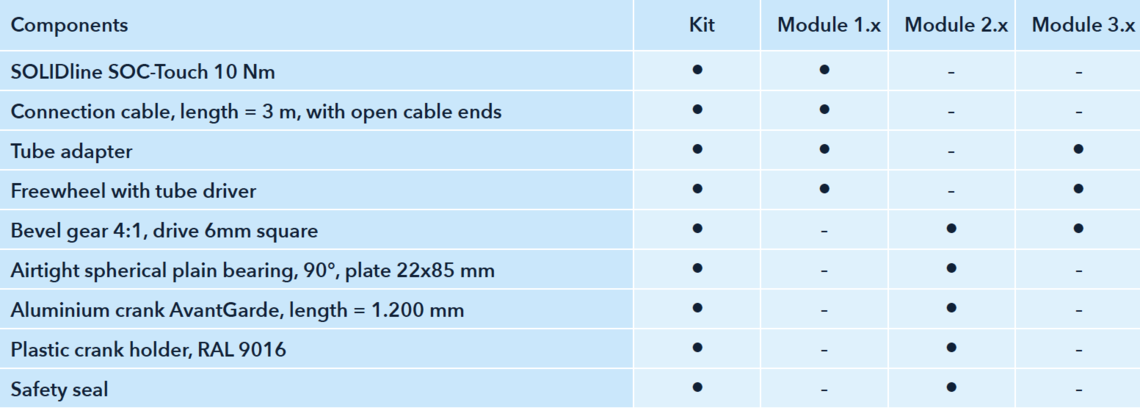

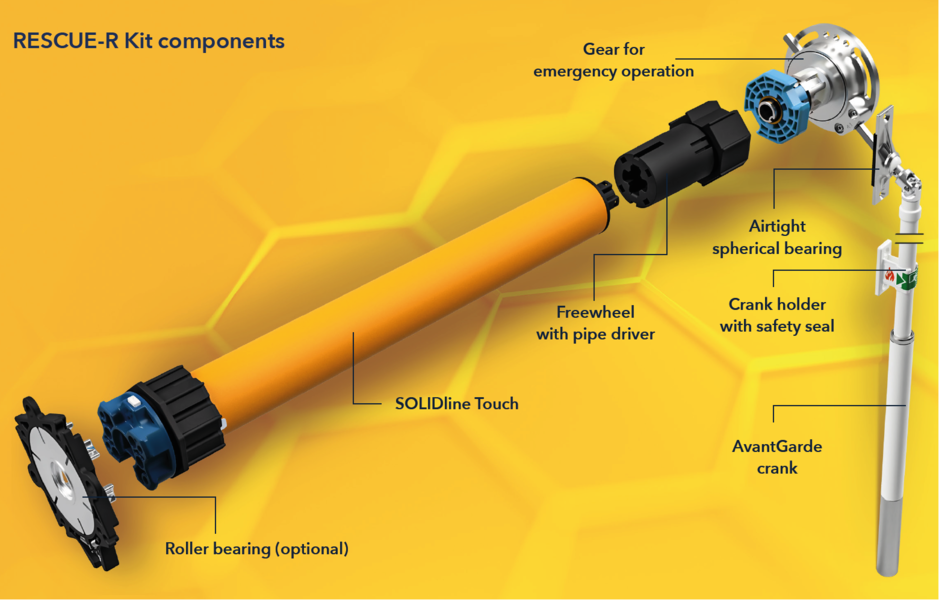

Overview RESCUE-R Kit

SOLIDline Touch 10 Nm: Optimal and fast adjustment of the end positions with only one key. No time-consuming turning of different adjustment screws.
SOLIDline X01 RESCUE (10 Nm): Plug & Play motor with electronic limit switching and self-learning end positions (can be switched in parallel).
Freewheel: Solid freewheel made of extremely stable and durable plastic.
Bevel gear: Proven components and modules ensure smooth operation. A patent application has been filed for the gear.
Airtight spherical bearing: Prevents cold bridges and protects against draughts and condensation.
AvantGarde crank: The elegant crank with concealed mechanism can be discreetly integrated into the room.

Operation in case of fire

If the roller shutter cannot be raised electrically in the event of a fire, RESCUE-R comes into operation. Simply pull the crank out of the holder, push the sleeve of the AvantGarde crank upwards and bend and turn the crank. The safety seal serves as a visual indication that the crank should only be operated in an emergency.

Recommissioning

No measures are necessary when restarting the SOLIDline Touch. If the shutter has been opened with the crank, the crank should be turned a quarter of a turn in the opposite direction before being put back into operation in order to relieve the gear and prevent the crank from turning during motor operation.

Installation

The freewheel with shaft driver is fitted to the motor. The system is installed as usual, except that the gearbox is fitted instead of the counter bearing and the roller capsule. If a certain direction of crank rotation is desired, the gearbox can be rotated axially by 180°. The shaft length/curtain width must not be less than 750mm.
